Allison DOC Premium [2021] Diagnostic Software

[10/2021]

Allison DOC Premium is a Windows-based diagnostic Software that allows users to troubleshoot and service Allison electronically controlled commercial transmissions and transmission control systems.

ALLISON DOC PREMIUM NEW FEATURES:
Adds Prognostics feature for CEC5 Off-Highway (MY18 and later)
Displays Main Processor Module (MPM) Software Level on the TCM Information grid (5th Gen)

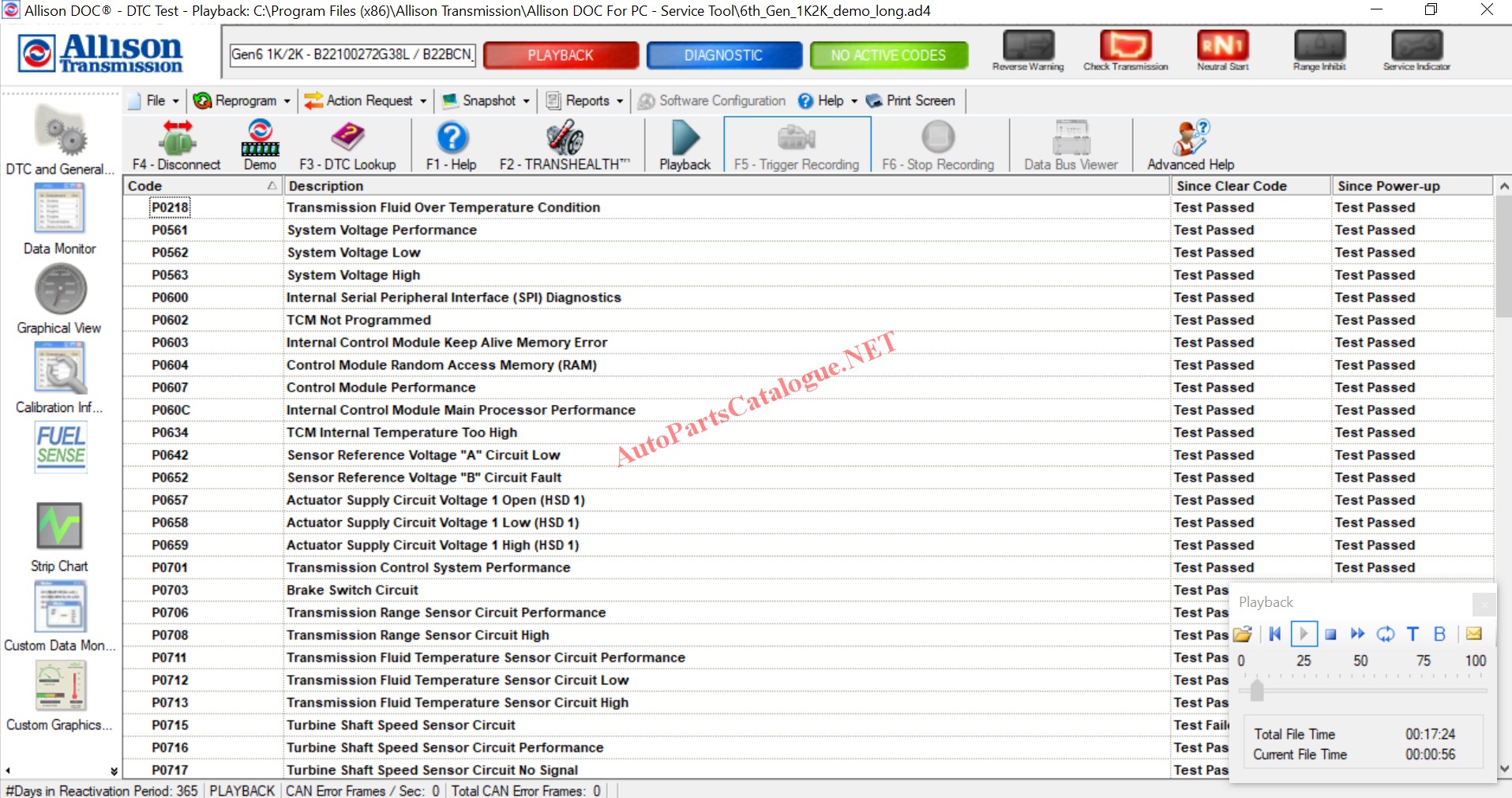

Updated DTC descriptions

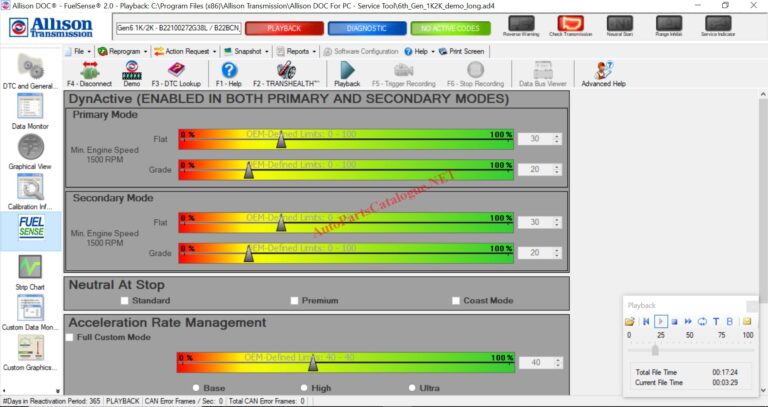

FuelSense 2.0 parameter reprogramming capability for vehicles equipped with a FuelSense 2.0 package
FuelSense 2.0 reprogramming enables fleets to optimize fuel economy and performance to their specific needs.
FuelSense 2.0 with DynActive Shifting is the latest technology to optimize fuel savings. The available packages are:
FuelSense 2.0 – DynActive Shifting
FuelSense 2.0 Plus – DynActive Shifting and Neutral at Stop
FuelSense 2.0 Max – DynActive Shifting, Neutral at Stop and Acceleration Rate Management
For more information, visit allisontransmission.com/fuelsense. Aftermarket installation of FuelSense 2.0 is not allowed in California or the CARB Heavy-Duty Opt-in states of Maine, Pennsylvania, and New Jersey.
RP1210C Support
Ability to auto-try channels (5th Gen / Type-2 vehicle connections) for OEMs who have wired the TCM diagnostics to CAN 2 or CAN 3
Ability to find the correct CAN data bus for diagnostics
Eliminates the need for OEM specific cross-over cables
Ability to select a channel for Data Bus Viewer

ALLISON DOC PREMIUM PERFORMS THE FOLLOWING:
Monitors 3000/4000 Product Families Transmission Control Module (TCM) data
Monitors 1000/2000 Product Families Transmission Control Module (TCM) data
Monitors CEC2, CEC3, and CEC5 (Off-Highway) data
Monitors TC10 data
Monitors CEC (ATEC) Electronic Control Units (ECU) data using a proprietary protocol and the Noregon USB Translator 2.0 – All Allison Products device and Nexiq USB-Link™

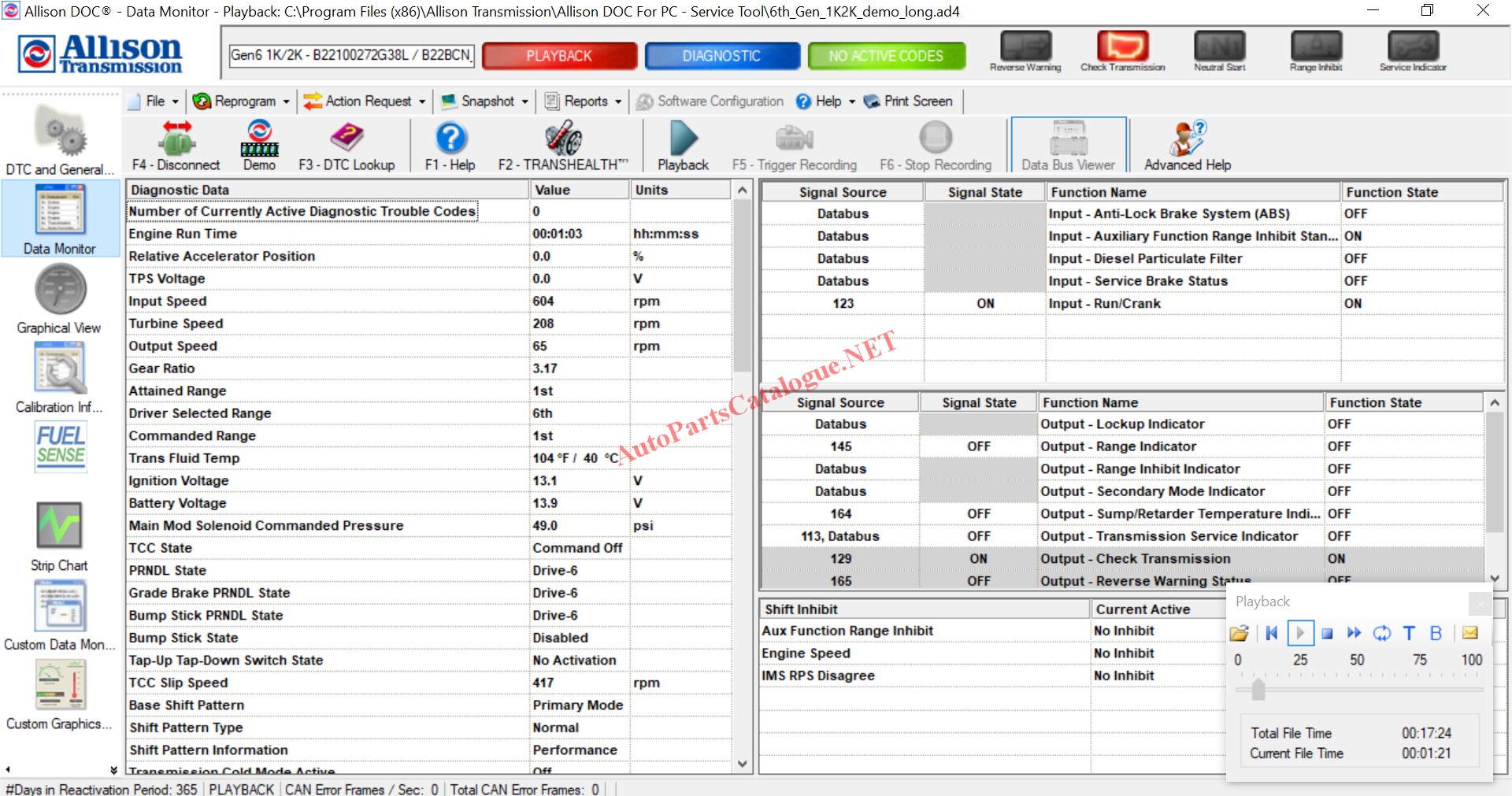

Displays multiple transmission parameters

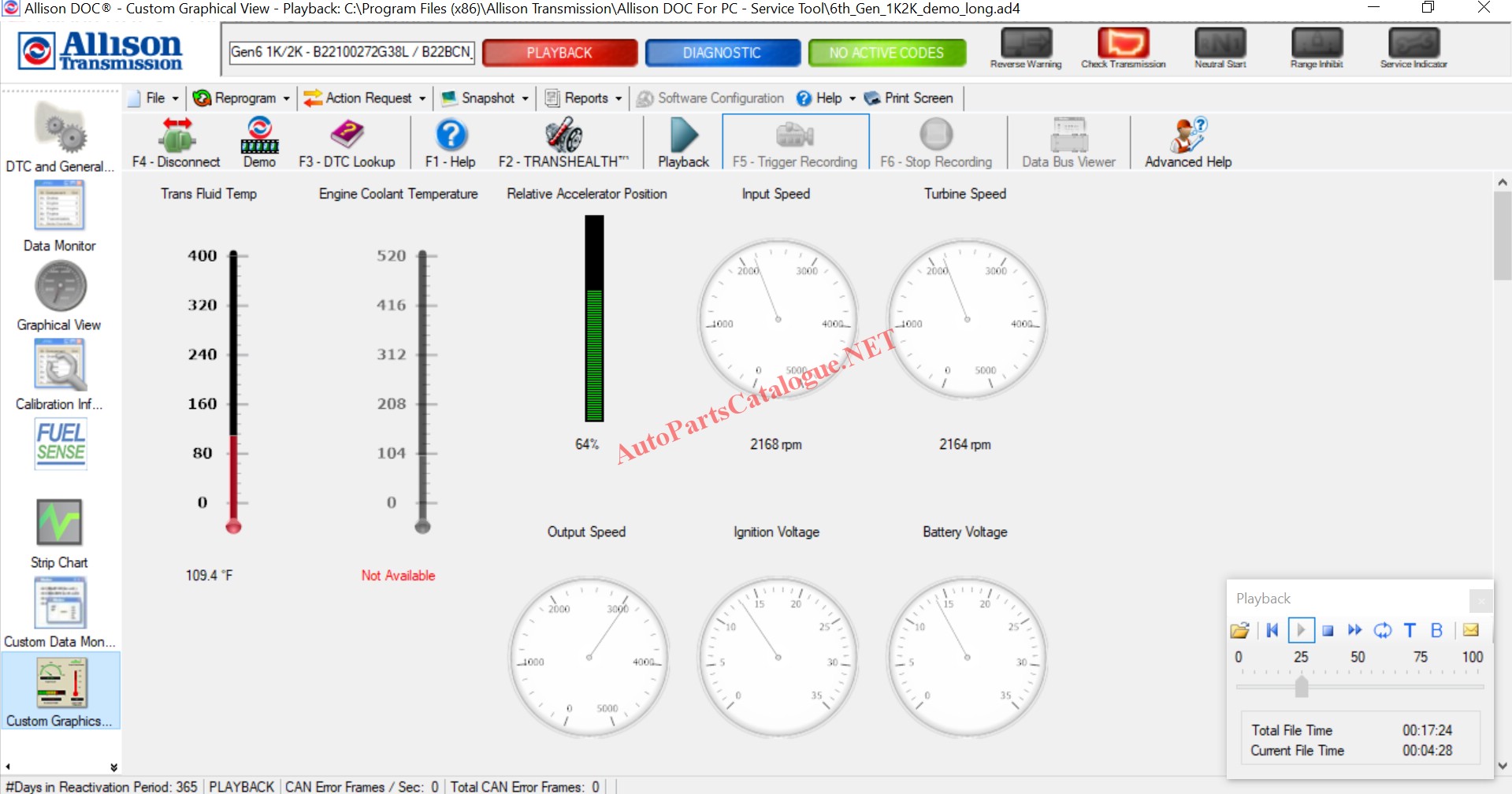

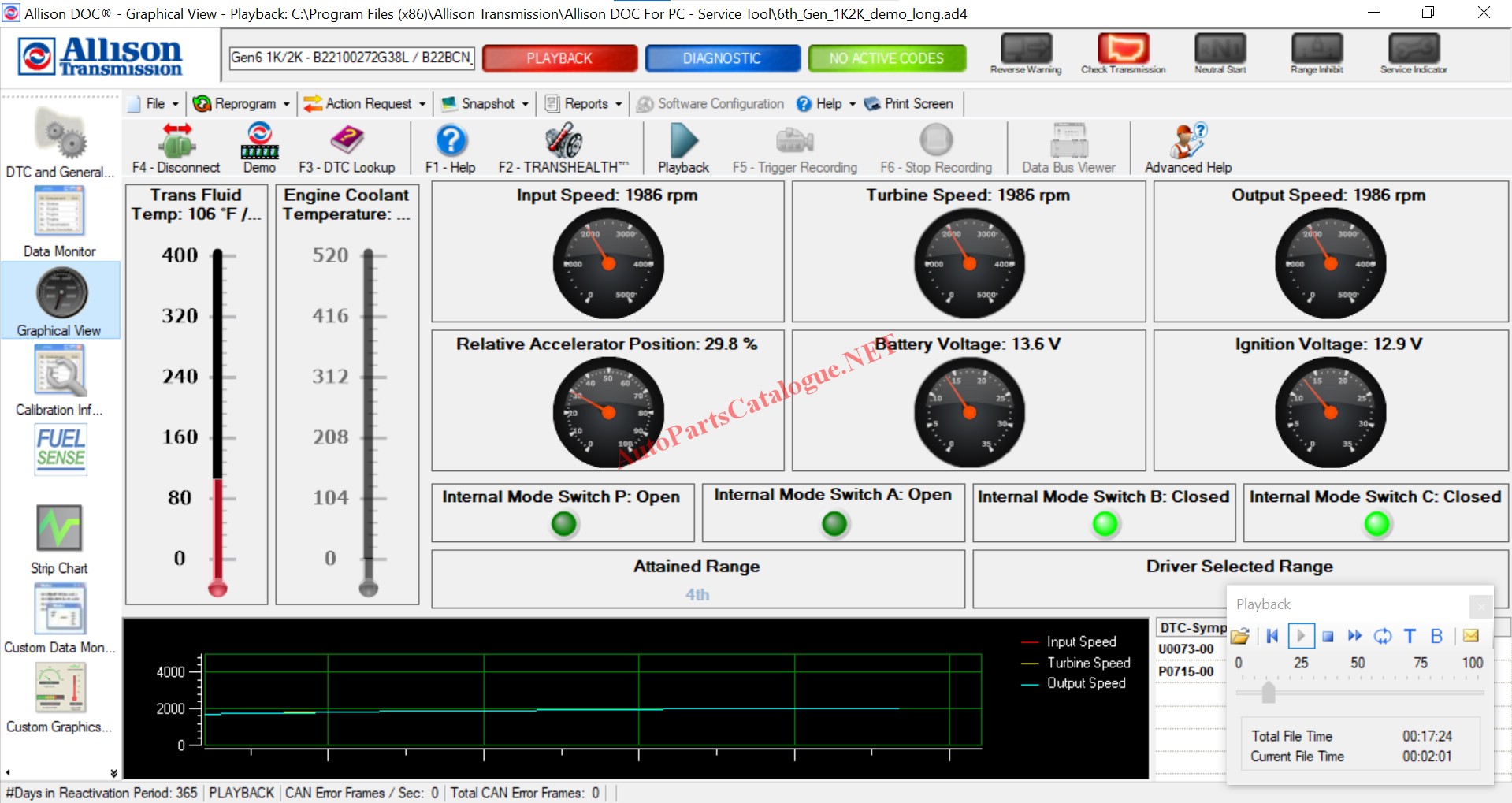

Displays a graphical instrument panel with analog and digital gauges

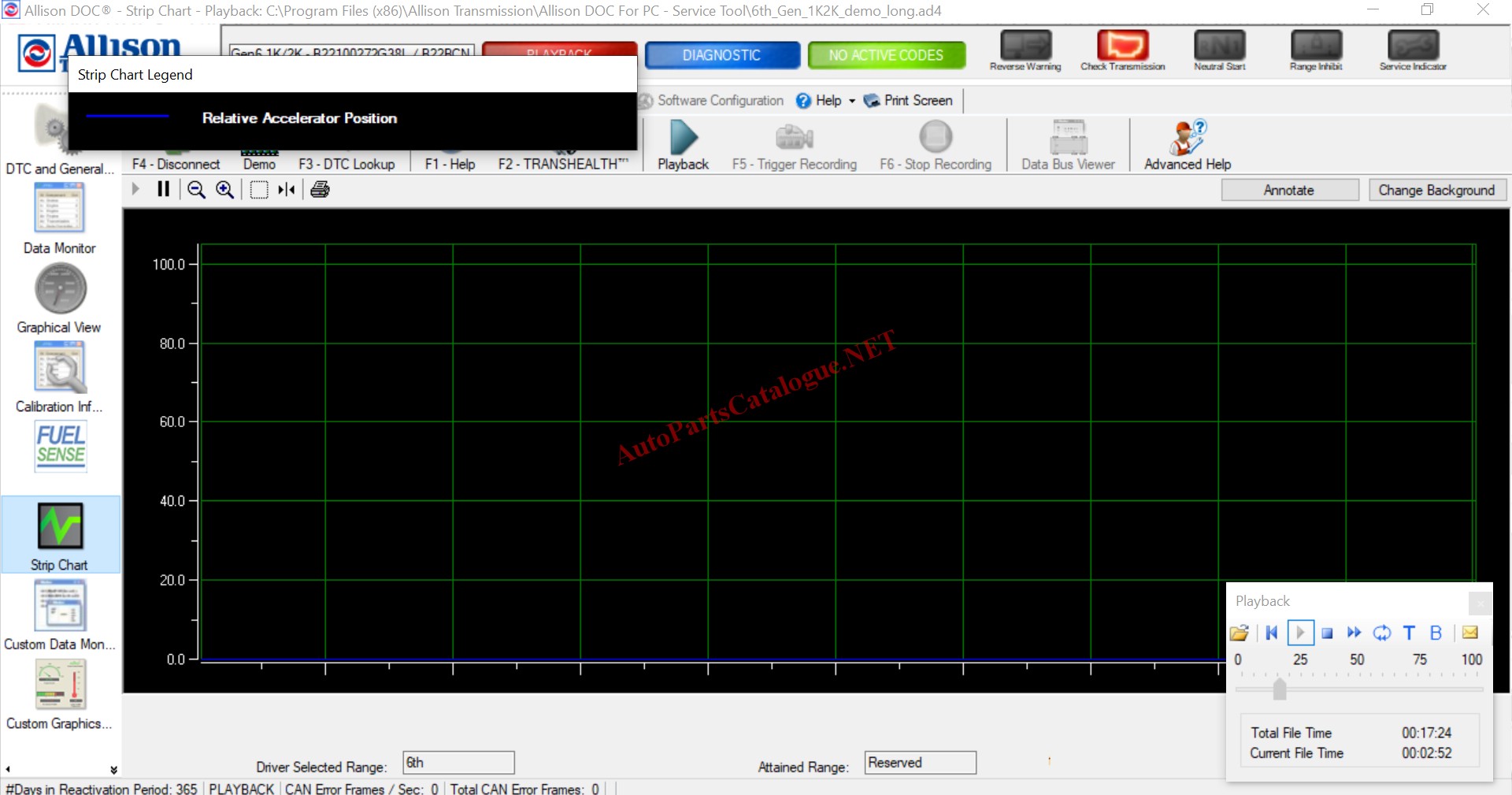

Displays a graphical strip chart
Records and plays back diagnostic sessions
Prints diagnostic reports

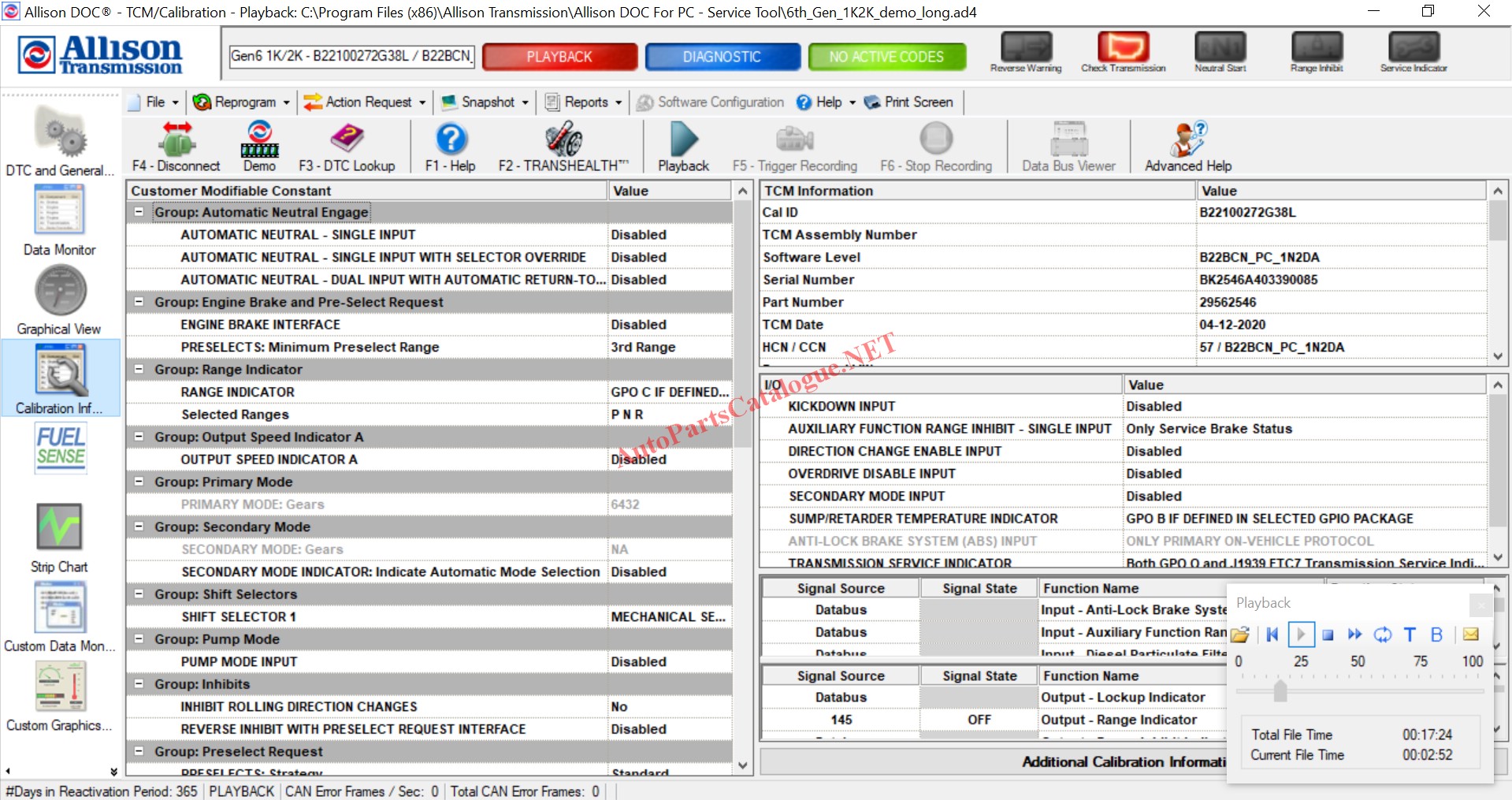

Reprograms selected TCM parameters (requires completion of Allison Transmission training)
Reprograms FuelSense 2.0 parameters (does not require completion of Allison Transmission training; see your local Allison Dealer or Distributor for course description and pricing)
ALLISON DOC PREMIUM PROVIDES THE FOLLOWING FEATURES:
Security measures to control reprogramming TCM/ECU parameters
Integrated Help with training videos

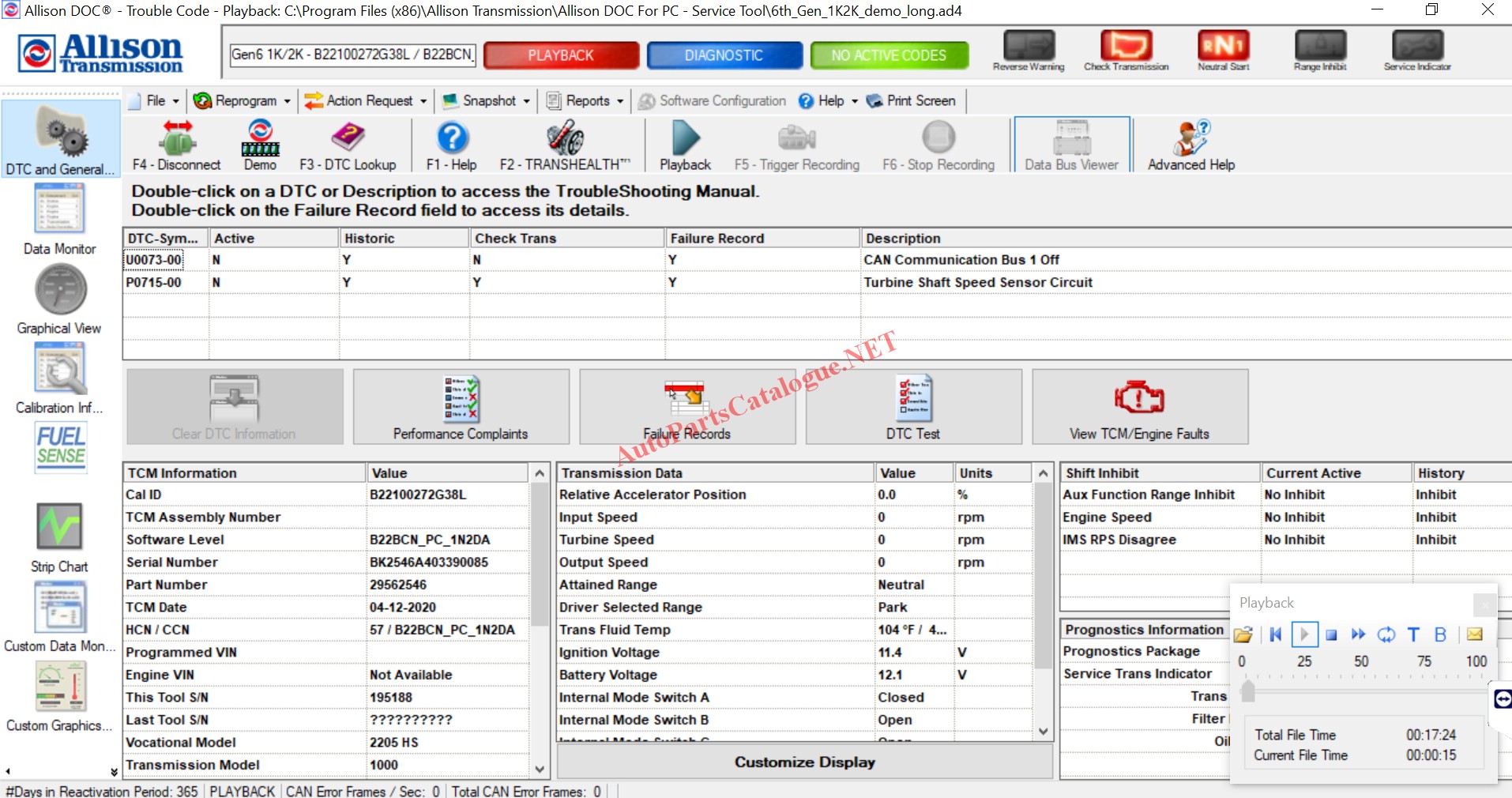

Diagnostic Trouble Code information directly links Troubleshooting Manuals for CEC2/CEC3/CEC5, 1000/2000, 3000/4000, and TC10 Product Families.
A demo mode using prerecorded data
SmartConnect for detecting the PC-to-vehicle translation device and communication link
Communication troubleshooting wizard for those cases where the tool is unable to connect to a control module
Allison DOC Premium is compliant with applicable TMC Recommended Practices, SAE Standards, and CE Standards
Allison DOC Premium is RP1210C compliant

OPERATING SYSTEM AND PC REQUIREMENTS:
20 GB Hard Drive (40 GB or greater recommended)
3 GB free hard drive space required to install the program (after software installation, the operating system requires sufficient free hard disk space to run the program)
Monitor capable of supporting a resolution of 1280×768 or higher recommended
USB port

Recommended CPU 2.0 GHz or Faster

Recommended RAM 4 GB or Greater

Adapters Support: NEXIQ, NOREGON DLA, DG DPA5

OS support: Windows 7, Windows 10 64 bit x64 & 32 bit x86

Region: All Regions Worldwide

Date of update: [10/2021]

Note: install and activate this software only by TeamViewer

Price: Contact us

Allison DOC Premium For Download
